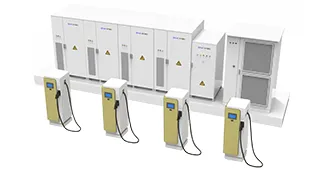

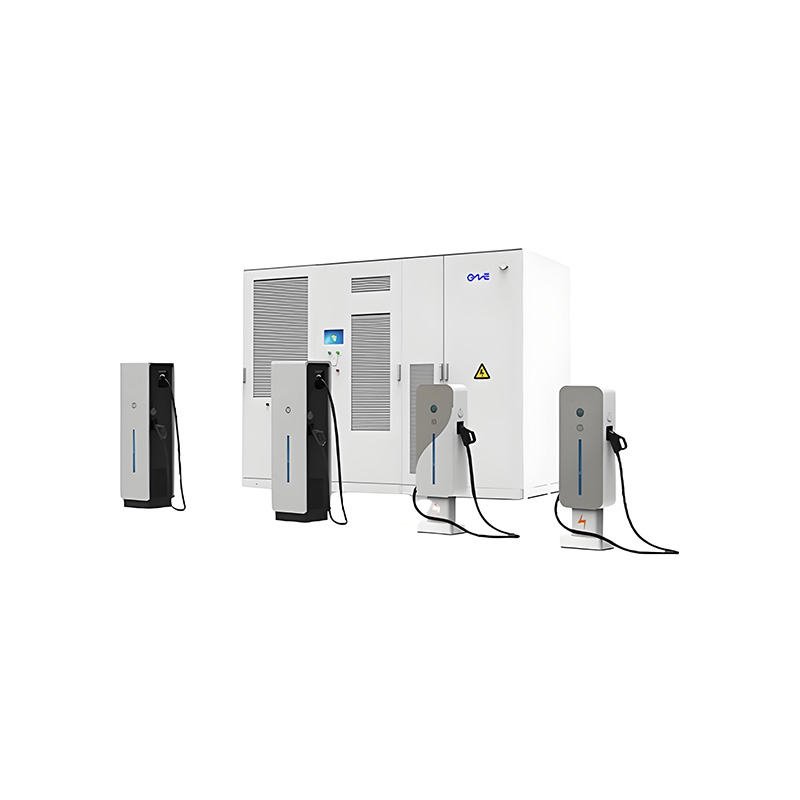

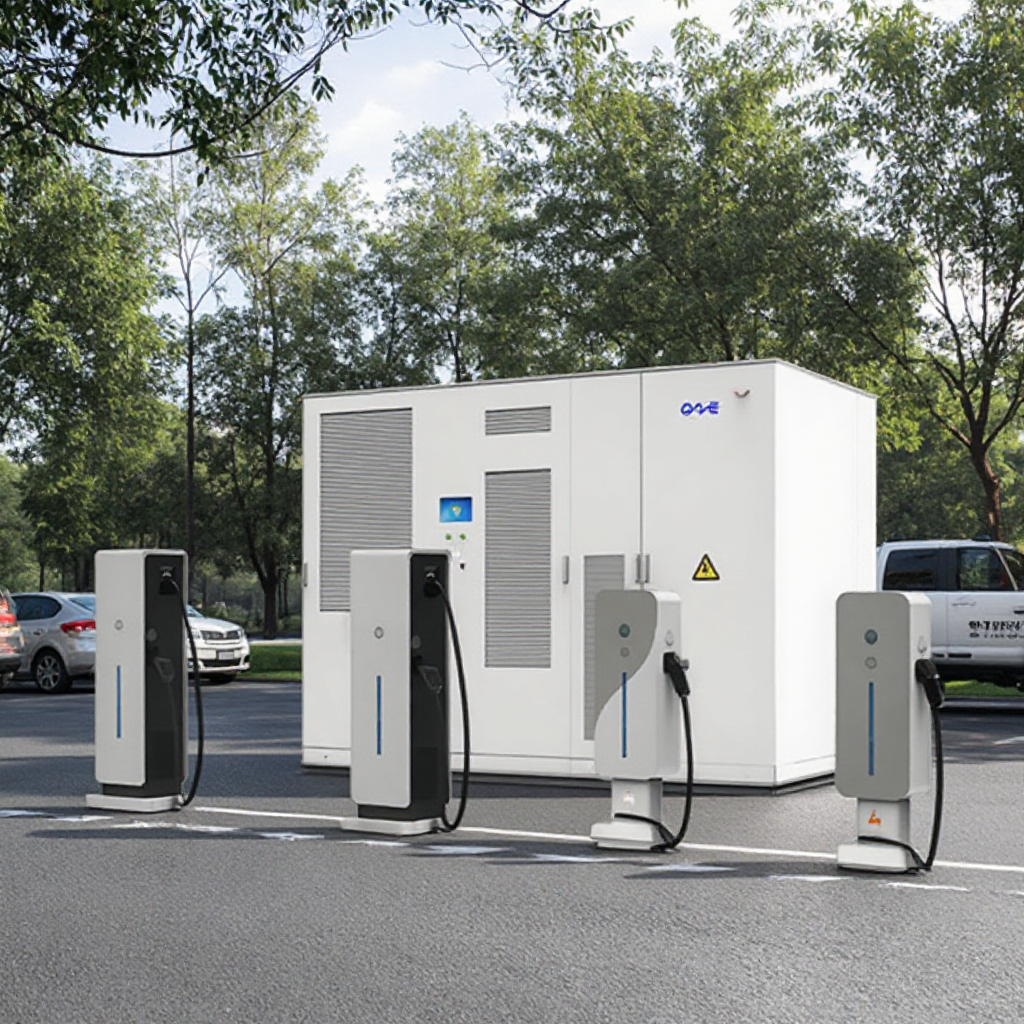

| Product Model | Nimbus |
| Battery Specifications | |
| Battery Type | LFP |
| Battery Model | 280Ah |
| Max. Energy Capacity | 824kWh |
| Voltage Range | 646.8～831.6Vdc |
| P-rate | 1P |
| Cooling Method | Liquid cooling |
| Battery Compartment Ingress Protection | IP55 |
| Weight | ≈2.5T |
| Compliance | UN 38.3, UN 3480, IEC 62619, IEC 61000-6-2/-4, IEC 62477-1, IEC 63056, IEC 60730-1 |
Charging Pile
| Max. Output Current | 250A |
| Max. Power | 180kW |
| Output Voltage Range | 200～1000Vdc |
| Payment Method | RFID, Credit Card |
| Max. Number | 18 |
PCS Specifications
| Rated AC Power | 100kW×N(N≤6) |
| Rated Grid Voltage | 400Vac |
| Rated Grid Frequency | 50/60Hz |
| Peak Efficiency | 98% |
| Ingress Protection | IP54 |
| System Dimensions (W×D×H) | 810×275×845 |
| Weight | ≈1T |
| Compliance | EN 50549, G99, VDE AR-N 4105, VDE AR-N 4110, NTS Spain, IEC 62477, IEC 61000-6-2, IEC 61000-6-4 |
General Specifications
| Operating Temperature Range | -25～55 °C (>45℃ derating) |
| Relative Humidity Range | 0～95% (No Condensation) |
Max. Working Altitude | 4000m (>2000m derating) |
| Fire Safety Equipment | Aerosol or NVAC1230, Smoke detector, Heat detectors |
